TEXTURES

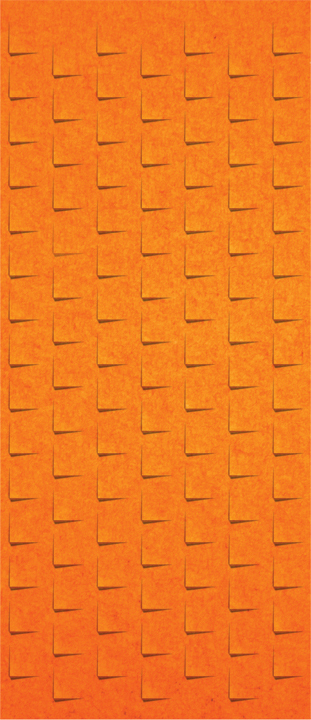

Zintra™ Acoustic Textures not only highlight the fantastic acoustic qualities of Zintra™ Acoustic 1/2" Panels, but also incredible fabrication flexibility. Zintra™ Acoustic Textures subtle three-dimensional relief creates dimension and acoustic refraction within your space, making them ideal for noisy, public spaces where good acoustic quality and aesthetics are required. Our wide range of designs and colors work easily in classic or modern settings.
FEATURES
  • Uniquely designed sound solution - 0.45 NRC
  • Provides sound absorption as well as sound defraction
  • 9' long panels ideal for joint-free floor to ceiling applications
  • 8 standard designs
  • Easily installed
  • SPECIFICATIONS
    CONTENT
    100% Polyester
    ACOUSTIC RATING
    0.45 NRC
    PANEL SIZE
    4' x 9' x 1/2" / 1220mm x 2745mm x 12mm
    SURFACE FINISH
    Matte
    WEIGHT
    0.5 lbs / ft2 / 2.4 kg / m2
    COLOURS
    16 standard colors.
    APPLICATION
    Indoor areas only.
    FABRICATION
    Utility knife or CNC with oscillating knife.
    INSTALLATION
  • Adhere to substrate with adhesive.
  • Attach with screws, nails, stand-offs or with aluminum trim or millwork.
  • FIRE RATING
    In accordance with ASTM-E84, Zintra™ Acoustic 1/2" Panels achieve a Class A Flame Spread - passes CAN ULC S102-10.
    CARE INSTRUCTIONS
  • Vacuum to remove dust.
  • Remove spills immediately using a clean damp cloth or with soap and water.
  • Carpet and fabric cleaners can be used - always test an inconspicuous area first.
  • Stain repellant coating available for additional protection.
  • COLOURS
    Tar
    Sky
    To order a sample please select a desired colour.
    To place an order for Zintra Acoustic Solutions please call Customer Service: 1-800-268-1300
    DESIGN/PATTERNS
    VAGUE
    TESSAN
    HEXAGONE
    DROIT
    DIAMONT
    CORBE
    CERCLE
    CARRE
