CLOUDS
Reduce the irritating reverberation of sound with Zintra™ Acoustic Clouds. These pre-fabricated Zintra™
Acoustic 1/2" pieces are quickly and easily assembled on-site, then the shape is suspended from the
ceiling substrate. Zintra™ Acoustic Clouds provide attention grabbing three-dimensional texture that is
easily installed, as well as the practical benefit of effective noise reduction.
FEATURES
SPECIFICATIONS
CONTENT
100% Polyester
ACOUSTIC RATING
0.90 NRC
COLOUR
16 standard colors.
PACKAGE INCLUDES
Complete hanging hardware including 5'/ 1525 mm of aircraft wire and adjustable hardware.
INSTALLATION
Assemble clouds as per instructions. Fix hardware (supplied) to ceiling, feed wire through
Zintra and adjust height accordingly.
FIRE RATING
In accordance with ASTM-E84, Zintra™ Acoustic 1/2" Panels achieve a Class A Flame Spread - passes CAN ULC S102-10.
CARE INSTRUCTIONS
COLOURS
To order a sample please select a desired colour.
To place an order for Zintra Acoustic Solutions please call Customer Service: 1-800-268-1300
CLOUDS/Shapes
CLOCHETTE
Size 44" x 40" x 9"
1120MM x 1020mm x 230mmH
STRATUS
Size 55" x 28" x 12"
1400mm x 700m x 292mmH
DRANTE
Size 48" x 48" 5.5"
1220mm x 1220mm x 144mmH
Largest size 9' x 9' / 2750mm x 2750mm
WARP
Size 48" x 48" x 5.5"
1220mm x 1220mm x 144mmH
Largest size 9' x 9' / 2750mm x 2750mm

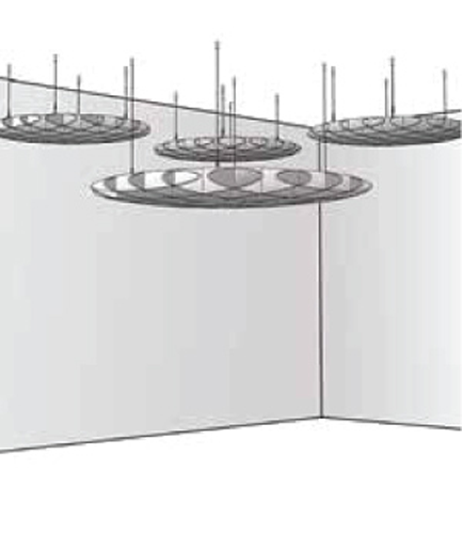

YOOFOE
Size 48"dia x 6.2" / 1220mm dia x 157mmH
Largest size 9' dia / 2750mm dia

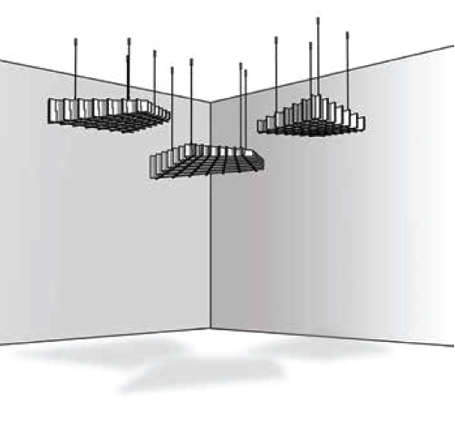

SQUARE
48" x 48" x 5.5" / 1220mm x 1220mm x 140mmH
Largest size 9' x 9' / 2750mm x 2750mm
SQUARE 48" x 48" or 108" x 48"
SQUARE 48" x 48" or 108" x 48" DXF
SQUARE 108" x 108"
SQUARE 108" x 108" DXF
SQUARE INSTALL INSTRUCTIONS
