BLADES
Zintra™ Acoustic Blades are a range of pre-fabricated, wall mounted systems that showcase Zintra's unique, rigid, yet flexible characteristics. Combining aesthetic appeal and acoustic performance, these systems are supplied ready to install with minimal fuss. The increased surface area of the vertical blades presented to the room results in a greater absorption of sound compared to flat panels.
FEATURES
  • Easy to install with supplied hardware
  • NRC = 0.90
  • Customizable height and width
  • Ability to mix and match blade color and shape
  • Create custom designs and shapes
  • Flat packed for cost effective transport
  • SPECIFICATIONS
    CONTENT
    100% Polyester
    ACOUSTIC RATING
    0.90 NRC
    COLOUR
    16 standard colors.
    STANDARD SIZE
  • 9' h x 40" w / 2745mm x 1000mm or
  • 4'6" h x 40" w / 1375mm x 1000mm
  • PACKAGE INCLUDES
  • Pre-fabricated aluminium frame - 3 each for 9' high, 2 each for 4'6" high.
  • Pre-cut Zintra™ Acoustic 1/2".
  • End-caps and screws.
  • BLADE THICKNESS
    1/2" / 12mm
    INSTALLATION
  • Fix Aluminium Supports to the substrate parallel to each other at appropriate heights.
  • Insert notched Zintra Blades.
  • FIRE RATING
    In accordance with ASTM-E84, Zintra™ Acoustic 1/2" Panels achieve a Class A Flame Spread - passes CAN ULC S102-10.
    CARE INSTRUCTIONS
  • Vacuum to remove dust.
  • Remove spills immediately using a clean damp cloth or with soap and water.
  • Carpet and fabric cleaners can be used - always test an inconspicuous area first.
  • Stain repellant coating available for additional protection.
  • COLOURS
    Tar
    Sky
    To order a sample please select a desired colour.
    To place an order for Zintra Acoustic Solutions please call Customer Service: 1-800-268-1300
    STANDARD BLADE CONFIGURATIONS
    Size: 9'H x 40"W and 4'-6"H x 40"W
    STRAIGHT
    STRAIGHT BLADES 40" x 108"
    STRAIGHT BLADES 40" x 108" DXF

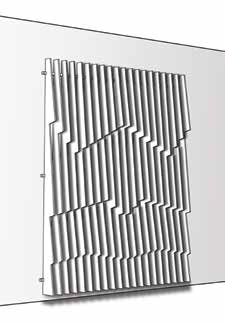

    BOLT
    BOLT BLADES 40" x 108"
    BOLT BLADES 40" x 108" DXF

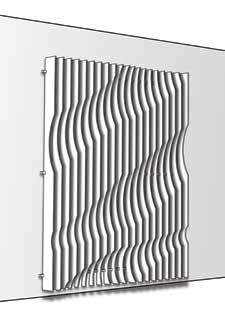

    CANYON
    CANYON BLADES 40" x 108"
    CANYON BLADES 40" x 108" x 4.5" DXF
    CANYON BLADES 40" x 108" x 9.2" DXF

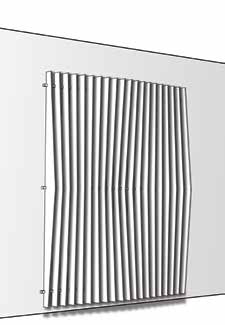

    RIDGE
    RIDGE BLADES 40" x 108"
    RIDGE BLADES 40" x 108" DXF

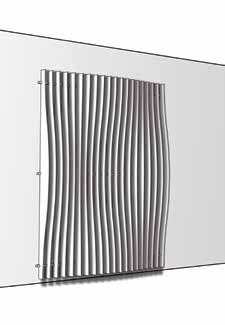

    SWELL
    SWELL BLADES 40" x 108"
    SWELL BLADES 40" x 108" DXF
